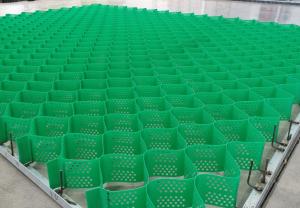

Road Driveway Slope Reinforcement Plastic HDPE Geocell Textured Smooth Gravel Stabilizer Grid

Product Categories

Anhui Hechuang New Synthetic Materials Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Road Driveway Slope Reinforcement Plastic HDPE Geocell Textured Smooth Gravel Stabilizer Grid

Name: Road Driveway Slope Reinforcement Plastic HDPE Geocell Textured Smooth Gravel Stabilizer Grid
Brand: Geomax
Price: 1 USD

China Road Driveway Slope Reinforcement Plastic HDPE Geocell Textured Smooth Gravel Stabilizer Grid factory

Brand Name : Geomax

Model Number : 150-445

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : High-density polyethylene (HDPE)

Type : 150-445

Color : Black

Welding space : 445mm

Thickness : 1.5mm

Height : 150

Surface : Smooth textured perforated

Standard : ASTM

Contact Now

PRODUCT DESCRIPTION

Road Driveway Slope Reinforcement Plastic HDPE Textured Smooth Geocell Gravel Stabilizer Grid

Product Introduction

The soil work space room is to be take by the HDPE breadth of the high strength, was become by strong dint welding of have the net space room structure, it flex from such as, the conveyance can fold, usage the hour opens and hurtles to fill the ground, or concrete to anticipate, constituting to have the strong side to limit and greatly just the structure body of the degree. Can use to be the mat layer, handle the loading ability that the weak foundation enlarges the foundation, also can build to constitute the to face the protection structure on the bedcover, can also use to construct to pay file structure etc.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

Road Driveway Slope Reinforcement Plastic HDPE Geocell Textured Smooth Gravel Stabilizer Grid

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
