Plastic Sheet Textured And Perforated HDPE Geocells For Slope Protection

Name: Plastic Sheet Textured And Perforated HDPE Geocells For Slope Protection
Brand: Geomax
Price: 1 USD

China Plastic Sheet Textured And Perforated HDPE Geocells For Slope Protection factory

Brand Name : Geomax

Model Number : 150-445

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : HDPE

Type : 150-445

Color : Black

Welding space : 445mm

Thickness : 1.5mm

Height : 150

Surface : Perforated

Standard : ASTM

Contact Now

PRODUCT DESCRIPTION

Plastic Sheet Textured And Perforated HDPE Geocells For Slope Protection

Product Introduction

 It is flexible to fold during the transport and installation on construction site. The geocell nets
will be filled with soils, granular, cements or other on-site infill materials when stretched into
web structures, which has powerful and rigid confinement in the lateral and vertical sides.

Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance,
resistance to acid and alkali;Suitable for different soil and soil conditions, such as desert.

Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing
capacity of subgrade and scattered loads.

Change the large room height, welding such as geometrical size can meet different engineering needs.

Retractile, transport of small size; Connection is convenient, fast construction speed.


Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

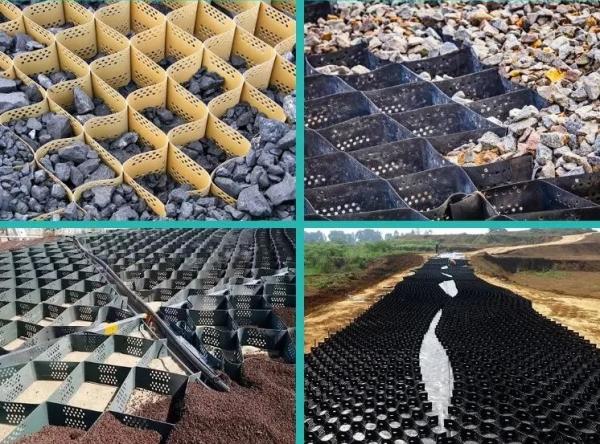

Application

Plastic Sheet Textured And Perforated HDPE Geocells For Slope Protection

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
