HDPE Ultrasonic Honeycomb Grid Gravel Smooth Perforated 100-712 For Driveway Reinforcement

Name: HDPE Ultrasonic Honeycomb Grid Gravel Smooth Perforated 100712 For Driveway Reinforcement
Brand: Geomax
Price: 1 USD

China HDPE Ultrasonic Honeycomb Grid Gravel Smooth Perforated 100-712 For Driveway Reinforcement factory

Brand Name : Geomax

Model Number : 150-445

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : HDPE

Type : 150-445

Color : Black

Welding space : 445mm

Thickness : 1.5mm

Height : 150

Surface : Perforated

Standard : ASTM

Contact Now

PRODUCT DESCRIPTION

Hdpe Honeycomb Grid Gravel Smooth Perforated 100-712 HDPE Ultrasonic Geocell Gravel Grid For Driveway Reinforcement

Product Introduction

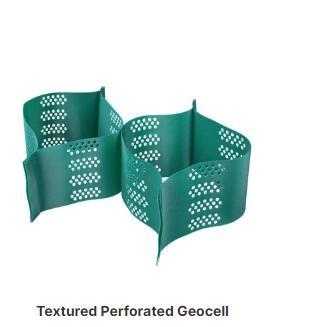

 Geocell Honeycomb Restraint System is three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or other polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which the materials are placed and compacted. This creates a free-draining system that holds the materials in place
 and prevents mass movements by providing confinement through tensile reinforcement. Cellular reinforcement systems improve the structural and functional behavior of soils.Road material geocell grass paver for soil reinforce


Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

HDPE Ultrasonic Honeycomb Grid Gravel Smooth Perforated 100-712 For Driveway Reinforcement

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
