Brand Name : Geomax
Model Number : 1.5-100-356
Certification : CE
Place of Origin : ANHUI CHINA
MOQ : 1000 ㎡
Price : Negotiation
Payment Terms : T/T, L/C
Supply Ability : 2000㎡ per day
Delivery Time : 10-20 days
Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested
GeoMax Material : HDPE Plastic
GeoMax Standard : ASTM
Cell Height : 100
Geomax Model : GM356
Geocell Color : black
Welding Space : 356mm
Cell Thickness : 1.5mm
Surface : Textured&Perforated
Geocell Retaining Wall 356mm Driveway Road Railway Soil Stabilizer Hdpe Astm Smooth Geocell
Product Introduction
GeoMax hdpe geocell is a collapsible geo-cell typically used for roadways or military applications, but we find the same material to be effective for many areas around homes and farms for purposes of driveways, parking pads, shed bases and more. The engineered structure of GeoMax helps spread any applied weight over a greater area.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() | |
![]() | |
![]() | |
![]() | |
![]() |

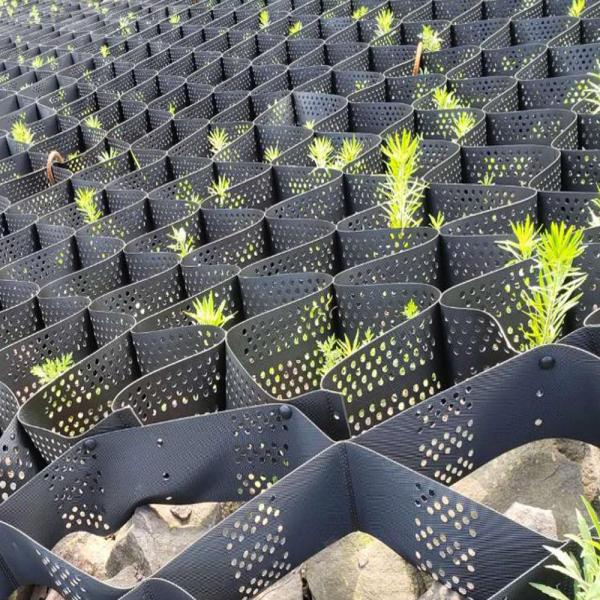

356mm Driveway Road Railway Soil Stabilizer Hdpe Astm Smooth Geocell Images |
